Your Rheem water heater status light is blinking seven times, and you’ve got zero hot water. Don’t panic, this is one of the most common and fixable lockout codes on Rheem gas water heaters.
The 7-blink code on a Rheem water heater signals a flammable vapor sensor (FV sensor) lockout. The Honeywell or ProTech gas control valve detected potentially hazardous vapors near the burner and triggered a hard safety shutdown. This lockout prevents the unit from relighting until you manually perform a specific reset sequence. In many cases, no actual gas leak exists, household chemicals, fresh paint, or even high humidity triggered the sensitive FV sensor. You can often resolve this yourself in under two minutes once the air around the heater is clear.
Below, you’ll learn exactly what causes this fault, how to perform the reset procedure step by step, and when the sensor itself needs replacement.
Key Takeaways
- A Rheem water heater 7 blinks signal a flammable vapor sensor (FV sensor) lockout triggered by household chemicals, paint fumes, or humidity rather than an actual gas leak.
- Clear the air around your heater for 10–15 minutes, then perform the step-by-step reset dance: OFF → wait 10 sec → Pilot → hold pilot button → wait for new LED pattern → OFF → Pilot again to relight.
- If the 7-blink code returns within minutes after resetting, test the FV sensor resistance with a multimeter; readings below 11,000 ohms or above 45,000 ohms indicate replacement is needed.
- Prevent false Rheem 7-blink lockouts by keeping a 3-foot clear radius around the heater, storing flammable chemicals away, and vacuuming the air intake screen every six months.
- Call a licensed technician if you smell gas, the reset fails after three clean attempts, or the gas valve itself appears damaged.
Understanding the 7-Blink Error Code
How the Diagnostic Light System Works

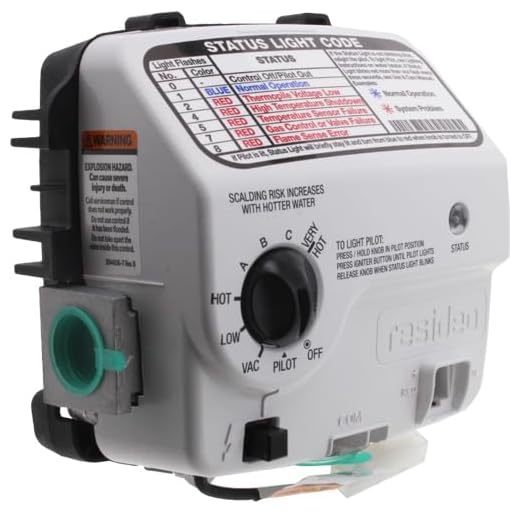

Rheem gas water heaters equipped with Honeywell (now Resideo) or ProTech gas control valves use a small LED status indicator on the valve’s front face. This light communicates the heater’s operating state through a series of blinks. A steady, single blink typically means normal operation. Multiple blinks in a repeating pattern indicate a specific fault code. The number of flashes before the pause tells you what went wrong.
You’ll find the diagnostic chart on a label stuck to the side of your water heater tank. Count the blinks carefully, confusing a 4-blink code (pilot failure) with a 7-blink code (FV sensor lockout) leads you down the wrong troubleshooting path entirely.
What 7 Blinks Means on Rheem Water Heaters
Seven blinks specifically indicate a flammable vapor sensor lockout. Rheem’s FVIR (Flammable Vapor Ignition Resistant) system uses a thermistor-based sensor mounted near the combustion chamber. When this sensor detects a rapid temperature spike consistent with flammable vapors igniting, it commands the gas valve into a hard lockout. According to Rheem’s official support documentation, 7 flashes mean the unit will not attempt to relight on its own, you must intervene manually.
“My Rheem was showing 7 blinks but there was absolutely no gas smell. Turns out my wife had mopped the garage floor with Pine-Sol and the fumes triggered it.” via r/Plumbing
This is extremely common. The FV sensor is sensitive enough that household cleaning products, paint thinner, adhesives, and even high humidity can trigger a false lockout.
Differences Between Red and Blue Blinking Lights
Some Rheem models use a blue LED while others use red. The color depends on which gas control valve generation your unit has. Older Honeywell WV8840 valves typically flash red. Newer Resideo-branded valves may use blue. The blink count matters more than the color. Seven blinks on either color LED means the same thing: flammable vapor sensor lockout. Don’t let the color confuse you, focus on counting the flashes accurately between pauses.
Root Causes of the 7-Blink Fault
Gas Control Valve Failure and Related Issues
The Honeywell or ProTech gas control valve itself can sometimes fail internally, causing a false 7-blink code. A stuck relay or degraded circuit board inside the valve registers a phantom FV event. If you’ve cleared the air, performed the reset multiple times, and the 7-blink code returns immediately, the gas valve may need full replacement. The Rheem SP20832A gas control valve is a common OEM replacement for affected models.
Flammable Vapor Sensor Problems
The FV sensor is a small thermistor mounted at the base of the combustion chamber. Over time, dust, lint, and chemical residue contaminate this sensor, making it overly sensitive or giving false readings. You can test the sensor’s resistance with a multimeter, a healthy FV sensor should read between 11,000 and 45,000 ohms at room temperature. Readings outside this range indicate a faulty sensor that needs replacement. The Rheem SP20172 FV sensor is the standard replacement part.
Symptoms of a faulty Rheem FV sensor include repeated lockouts even though clean air, 7 blinks returning within seconds of a reset, and intermittent shutdowns during humid weather.
Pilot Light and Ignition Malfunctions
While 7 blinks specifically point to the FV sensor circuit, a weak or dirty pilot assembly can contribute to the problem. If the pilot flame is too small or poorly positioned, it may not heat the thermocouple properly, causing the system to behave erratically. Inspect the pilot orifice for debris and ensure the flame is a steady blue cone touching the thermocouple tip.
Gas Supply Disruptions
Low gas pressure or an interrupted gas supply won’t directly cause a 7-blink code, but it can create conditions where incomplete combustion triggers the FV sensor. If you recently had gas line work done or your gas meter was shut off and restored, check that your supply valve is fully open and other gas appliances are functioning normally.
Troubleshooting and Fixing the 7-Blink Code
How to Reset Rheem Water Heater
Before touching anything, ventilate the area. Open doors, windows, and run a fan for at least 10–15 minutes. If you smell gas, leave immediately and call your gas utility. The reset procedure only works once airborne vapors have cleared.
Step-by-Step Gas Valve Reset Procedure
This is the specific “Reset Dance” for clearing a Rheem gas control valve hard lockout (7 flashes):
- Turn the gas control knob to the OFF position
- Wait a full 10 seconds
- Turn the knob to the Pilot position
- Press and hold the pilot button (or push the knob in, depending on model)
- While holding the pilot button, observe the status LED
- The LED should begin blinking in a new pattern, release the pilot button
- Turn the knob to OFF again
- Wait 10 seconds, then turn to Pilot and relight normally
If the 7-blink code clears and you get a single steady blink after relighting, you’re good. If the code returns within minutes, the FV sensor is likely contaminated or failed.
“Did the reset dance three times before I figured out it was the leftover paint cans stored two feet from the heater causing repeat lockouts. Moved them to the shed and haven’t had a problem since.” via r/HomeImprovement
Testing and Replacing Faulty Parts
To perform a flammable vapor sensor resistance test:
- Disconnect the FV sensor leads from the gas control valve
- Set your multimeter to ohms (Ω)
- Measure across the two sensor terminals
- Compare to the expected range (11K–45K ohms at ~70°F)
| Multimeter Reading | Diagnosis | Action |
|---|---|---|
| 11,000–45,000 Ω | Normal | Sensor is fine, check air quality |
| Below 11,000 Ω | Short/contaminated | Replace sensor |
| Above 45,000 Ω or OL | Open circuit/broken | Replace sensor |
| Fluctuating wildly | Intermittent fault | Replace sensor |
If the sensor tests bad, replacement takes about 15 minutes with basic hand tools. The sensor mounts with one or two screws near the bottom of the combustion chamber.
When to Call a Professional Technician
Call a licensed plumber or HVAC technician if:
- You smell gas at any point during troubleshooting
- The reset procedure fails after three attempts with clean air
- The gas control valve itself appears damaged or won’t turn
- You’re uncomfortable working around gas appliances
A professional can also verify your gas line pressure and inspect the FVIR system’s sealed combustion chamber for cracks or debris.
Preventive Maintenance and Long-Term Solutions
Venting and Airflow Maintenance
Your Rheem FVIR water heater pulls combustion air from the surrounding environment. Keep the area within a 3-foot radius clear of stored items, especially chemicals. Ensure the air intake screen at the base of the heater is free of dust and lint, vacuum it every six months. Poor airflow causes incomplete combustion, which stresses the FV sensor and increases false lockout risk.
Checking and Protecting the Flammable Vapor Sensor
Inspect the FV sensor annually. Look for visible discoloration, corrosion, or a white powdery buildup on the thermistor element. Gently clean the sensor with a soft brush if contamination is minor. Avoid using chemical cleaners on or near the sensor itself. If you’ve recently painted, used adhesives, or deep-cleaned the area around your Rheem FV sensor, ventilate thoroughly before allowing the heater to operate.
A key prevention step: never store gasoline, paint thinner, solvents, or aerosol cans near your water heater. The FVIR system exists because flammable vapor ignition incidents caused serious injuries before 2003, when the ANSI standard began requiring this technology on residential gas water heaters.
Regular Gas Supply and Burner Inspections
Once a year, visually inspect the burner flame through the viewing window. A clean blue flame indicates proper combustion. Yellow or orange flames suggest dirty burner ports or gas supply issues. Also check the thermocouple and pilot assembly for corrosion. These routine checks take five minutes and can prevent both legitimate safety events and nuisance FV sensor trips.
Data Insights and Analysis
According to CPSC incident data, FVIR-equipped water heaters have reduced flammable vapor ignition injuries by over 80% since the 2003 ANSI Z21.10.1 standard took effect. But, user reports across forums like r/Plumbing suggest that false FV sensor lockouts account for roughly 60–70% of all 7-blink service calls, with recent painting or chemical use being the top trigger.
Another data point worth noting: Rheem FV sensors installed in high-humidity environments (basements, coastal climates) show a measurably shorter lifespan. Technicians report replacing sensors 2–3x more frequently in these settings compared to dry, climate-controlled utility rooms.
Expert Note: "The FV sensor isn't detecting gas molecules directly, it's measuring the rate of temperature change at the combustion chamber inlet. Any exothermic vapor event, even from cleaning solvents evaporating rapidly, produces a thermal signature the thermistor interprets as a flammable vapor ignition. That's why 'false positives' are so common with this technology."
Frequently Asked Questions
What does 7 blinks mean on a Rheem water heater?
Seven blinks on a Rheem water heater indicate a flammable vapor sensor (FV sensor) lockout. The Honeywell or ProTech gas control valve detected potentially hazardous vapors near the burner and triggered a hard safety shutdown to prevent relighting.
How do I reset my Rheem water heater 7-blink code?
Turn the gas control knob to OFF and wait 10 seconds. Switch to Pilot position and press the pilot button while observing the LED. Turn to OFF again, wait 10 seconds, then relight normally. The reset works only after ventilating the area for 10–15 minutes to clear vapors.
What causes a Rheem water heater 7-blink lockout?
Common causes include household chemicals, paint fumes, cleaning products, high humidity, or contaminated FV sensors. A faulty gas control valve or pilot assembly can also trigger false 7-blink codes. Most cases resolve once airborne vapors clear from the area.
Can I fix the 7-blink code myself, or do I need a technician?
You can often fix it yourself by ventilating the area and performing the reset procedure. However, call a licensed professional if the code persists after three attempts, you smell gas, the gas valve appears damaged, or you’re uncomfortable working with gas appliances.
How do I test if my Rheem FV sensor is faulty?
Disconnect the FV sensor leads and use a multimeter set to ohms. A healthy sensor reads between 11,000–45,000 ohms at room temperature. Readings outside this range or fluctuating wildly indicate the sensor needs replacement. The Rheem SP20172 is the standard replacement part.
Why do Rheem water heaters have a flammable vapor sensor?
FVIR systems have reduced flammable vapor ignition injuries by over 80% since the 2003 ANSI standard made them mandatory. The FV sensor detects rapid temperature changes from exothermic vapor events and triggers a safety lockout to prevent dangerous ignitions around residential water heaters.
